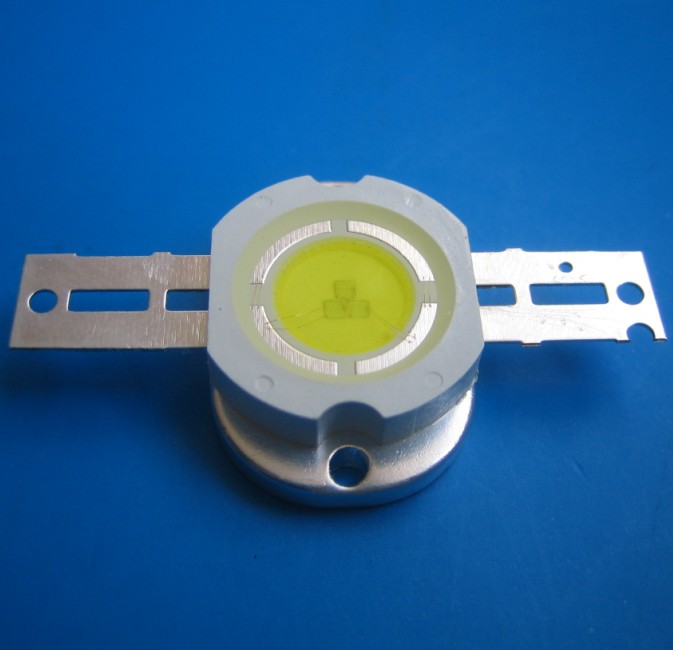

10W power LED

Name:10W power LED

Forward Voltage : 11.0 ~ 13.0V

Forward Current : Typ. 800mA

Luminous Flux : 500 ~ 700 Lumen

Emitting Color : White

Operation Temperature : -20℃ ~ 80℃

Storage Temperature : -20℃ ~ 100℃

Additional Heat-sink equipment is recommended when operation temperature is higher than 60℃.

Description

Power	Emitting Color	Lens Type	Working Current IF(mA)	Fofward Voltage VF(V)	Dominant Wavelength λD(nm)	Luminous Flux(lm)	Reverse Current IR(μA)AT VR=25V	Viewing Angle(°)
10W	White	Water Clear	800	11-13	5000-10000K	500～700	≤50	150±10
10W	Warm White	Water Clear	800	11-13	2700-4500K	500～700	≤50	150±10
