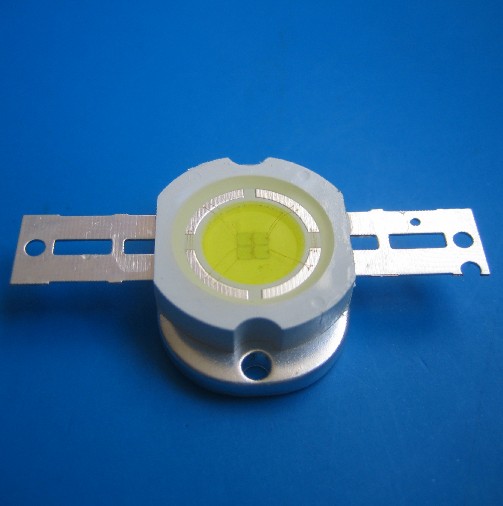

5W power LED

Name:5W power LED

Forward Voltage : 6.0 ~ 7.2V

Forward Current : Typ. 700mA

Luminous Flux : 450 ~ 550 Lumen

Emitting Color : White

Operation Temperature : -20℃ ~ 80℃

Storage Temperature : -20℃ ~ 100℃

Additional Heat-sink equipment is recommended when operation temperature is higher than 60℃.

Description

Power	Emitting Color	Lens Type	Working Current IF(mA)	Fofward Voltage VF(V)	Dominant Wavelength λD(nm)	Luminous Flux(lm)	Reverse Current IR(μA)AT VR=25V	Viewing Angle(°)
5W	White	Water Clear	700	6-7.2	5000-10000K	450～550	≤50	150±10
5W	Warm White	Water Clear	700	6-7.2	2700-4500K	400～500	≤50	150±10
